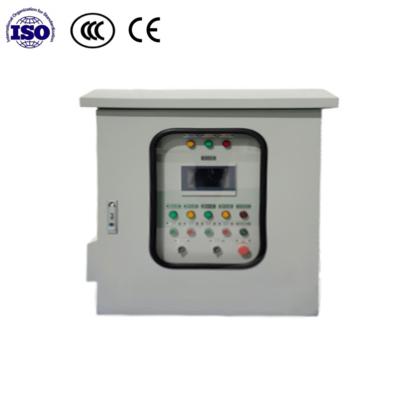

Industrial Automation PLC Control Cabinet Programmable Logic Controller
Product Describe:
1. Manufacturing production lines: For example, in the welding and assembly lines of automobile manufacturing, PLC control cabinets are used to achieve precise synchronous control of robotic arm movements, conveyor speed, and equipment start-stop.
2. Chemical industry: They are used to monitor and adjust the temperature, pressure, and liquid level of reaction kettles, as well as the operation of valve switches and material transfer pumps, ensuring stable and safe production processes.
3. Water treatment systems: In waterworks and sewage treatment plants, they control water pumps, filters, dosing equipment, etc., to realize water quality detection, water volume regulation, and automated treatment processes.
4. Metallurgical industry: For instance, in the control of blast furnaces and rolling mills in steel plants, PLCs coordinate parameters such as heating temperature and rolling speed to ensure the precision and efficiency of steel production.
5. Power systems: They are used for automated control in substations and distribution rooms, enabling remote monitoring and operation of circuit breakers, transformers, and reactive power compensation equipment to ensure stable power supply.
6. Packaging machinery: In food and pharmaceutical packaging production lines, they control actions such as sealing, cutting, and counting of packaging machines to improve packaging speed and consistency.
7. Logistics and warehousing: In automated stereoscopic warehouses, they control the movement and lifting of stackers, as well as the operation of conveyors, to realize automatic storage and sorting of goods.
Design:
| Application Scenario |
Common Dimensions (Height x Width x Depth, mm) |
Notes |
| Small-scale machinery |
600 x 400 x 300 - 800 x 600 x 400 |
Suitable for single-machine control |
| Medium-sized production lines |
800 x 600 x 500 - 1200 x 800 x 600 |
For multi-equipment coordination |
| Large industrial systems |
1200 x 800 x 600 - 2000 x 1000 x 800 |
Used in complex processes (e.g., chemical plants, steel mills) |
| Customized/Outdoor cabinets |
Variable (often 1500 x 800 x 600+) |
Weatherproof design for harsh environments |
IP Grade:
IP66 / IP65/ IP54 /IP55
Suggestion:
1. Size Options
• Compact: 400-600×200-300×150-200mm
• Standard: 600-800×1800-2000×400-600mm
• Large: 800-1000×2000-2200×600-800mm
2. Material Recommendations
• General industry: 1.5-2.0mm galvanized steel
• Corrosive environments: 2.0-3.0mm 5052/6061 aluminum alloy
• Explosion-proof applications: 2.5-3.0mm carbon steel
3. Protection Ratings
• IP20 (basic) → IP54 (workshop) → IP65 (outdoor)
4. Key Customization Features
• Seismic reinforcement (+30% strength)
• Thermal solutions (configured by power)
• EMC shielding (copper lining)
• Cost Optimization
• Standard sizes (600/800/1000mm modules)
